ABOUT SEVERAL PROBLEMS OF MODERN COSMOLOGY

III. ON THE MEAN SIZE OF COSMIC OBJECTS

Steffen Haase, Leipzig, Germany

ABSTRACT

Using new angular size-magnitude and angular size-redshift relations in the euclidean space we obtain a value of d » 30 kpc for the mean linear size of galaxies. A minimum for z » 1.25 in the angular size-redshift law cannot be found.

Subject headings: cosmology: distance scale --- cosmology: theory --- galaxies: distances and redshifts --- galaxies: fundamental parameters (radii)

back to the table of contents

1. COMPILATION OF SOME EQUATIONS

A further astrophysical quantity which is interesting for cosmology is the linear size of extragalactic objects. Since this quantity is not directly accessible with measurement technologies, the angular size is generally used. For any object it is
(1)
where d is the linear size of the object. The quantity D denotes the way covered by the observed photon, i.e. not the current distance between the considered object and the observer, since the galaxy which has emitted the light as well as the observers galaxy have been moved during the light travel time. The ratio between this light path and today's maximum possible light way DA = RSA was found to be [see part I (Haase, 2001)]
(I,16)
where z is the redshift in the spectral lines. Combining equation (1) with equation (I,16) gives the angular size-redshift law
(2)
where the proportion d/DA can be determined by a fit of the theory with the astrophysical measuring results, if and z are measured. Given DA, the linear size of galaxies at time of emission can be calculated.

For comparison the appropriate equation for the flat space (q0 = 1/2) derived in the literature (s. e.g. A. Sandage, 1995) is:
(zzz)
There is a substantial difference in the red shift term. This gives a minimum in the corresponding curve, which is not confirmed by the measurements.

While equation (2) gives a relation of the form j=j (z; d/DA), the angular size-magnitude law j =j (m; d/DA, mA) is using
(3)
given by
(4)
where m is the apparent magnitude. Since the apparent limit magnitude mA follows in principle from the Hubble diagram (compare with part I), we get a second approach for the proportion d/DA using equation (4). Of course we can use the absolute magnitude M instead of mA, to determine :
(5)
Thus given the distance modulus, the measuring value j directly implies the linear extension d .

Therefore a whole a string of equations is available, the correctness of which can be tested by comparing it with existing astrophysical measuring results.

back to the table of contents

2. COMPARISION WITH ASTROPHYSICAL MEASUREMENTS

Acting for a multitude of j-m-diagrams in the literature in the following the compilation by Huchra et al. (1983) is used, to determine the parameter d/DA. For the evaluation of this galaxy catalogue equal m-intervals and corresponding m- and j-mean values were formed because of the m-limitation of the CfA catalogue. The result is shown in Fig.1 . Fitting the theory with the best fit through the mean values gives d/DA = 9.357x10-6. Thus because of DA = 3206 Mpc the mean linear size of the CfA galaxies is d= 30 kpc (according to the definition of the angular size used in the CfA catalogue). For comparison: The literature states a linear diameter of 34 kpc for the milky way.

In general equation (4) allows the calculation of all linear sizes of star systems, the apparent magnitude of which and the corresponding angular size is measured. However the application of equation (4) requires, that the linear diameters of the cosmic objects did not change during the development of the universe, because the derived equations do not consider changes of this size. Besides all of the considered systems should have an equal absolute magnitude, but in reality this scatters within a large area.

Fig.2 shows the application of equation (2) to galaxy data according to Bardelli & Zucca (1995). Related to the angular size this catalogue is limited. Therefore j= 0,5'-intervals and corresponding j- and cz-mean values were formed, where the size 0,5' was chosen randomly. Mean values with less than 3 Objects were neglected, to avoid statistical falsification. Thus here we also have the proportion d/DA = 9.357x10-6. The mean linear size of these galaxies is therefore directly comparable with the value of the CfA objects.

Because of the relative small redshifts the data evaluated above give no information about the existence of the minimum of the angular size at z = 1.25 astrophysicists are looking for for a long time [compare e.g. with Sandage (1988), Kellermann (1993a, b) and Gurvits (1994)]. Equation (2) also does not predict such a minimum, as the application of differential calculus confirms immediately. The angular size is independent of z for sufficiently large redshifts and approaches d/DA as z--> ¥. The data material due to Kellermann (1993a, b) and Gurvits (1994) seems to point at the existence of a minimum, but a more detailed analysis according to Coles & Ellis (1994) of this measuring results points at a curve of best fit which is rather parallel to the abscissa for large redshift values, which probably corresponds to the theoretical approach.

For Fig.3 the table of the largest angular sizes (LAS) of radio galaxies according to Nilsson (1993) was used and the theory corresponding to equation (2) fitted. Hereby a 5th order polynom also given in Fig.3 was used, which well approaches the theoretical curve in the center of the data material. No minimum is found in the log(LAS)-log(cz)-diagram. For larger redshifts the measured values lie more below the new theoretical curve (line below). The deviation is smaller than for the theory found in the literature. Development effects could be responsible for the location of the measuring points for large red shifts: Cosmological objects were probably smaller in sooner times than later and today, respectively. However such a effect was not considered while deriving the proposed equations.


back to the table of contents

REFERENCES

Bardelli, S., & Zucca, E. 1995, Astronomische Nachrichten, 316, 1, 39

Coles, P., & Ellis, G. 1994, Nature, 370, 609

Gurvits, L.I. 1994, ApJ, 425, 442

Haase, St. 2000, www.xhaase.de

Huchra, J., Davis, M., Latham, D., & Tonry, J. 1983, ApJS, 52, 89

Kellermann, K.I. 1993a, Nature, 361, 134

Kellermann, K.I. 1993b, in Sub-arcsecond Radio Astronomy, ed. R.J.Davis & R.S.Booth, (Cambridge: Cambridge Univ. Press), 386

Nilsson, K., Valtonen, M.J., Kotilainen, J., & Jaakkola, T. 1993, ApJ, 413, 453

Sandage, A. R. 1995, in "The Deep Universe", Saas-Fee Advanced Course 23, Lecture Notes 1993, edited by B. Binggeli and R. Buser, Springer Verlag


back to the table of contents

FIGURES:

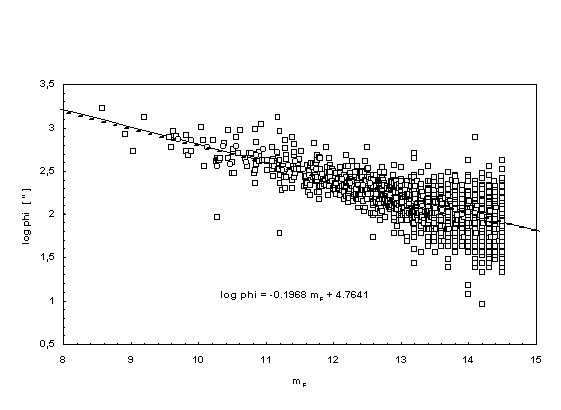

Figure 1.

Angular size-magnitude diagram according to Huchra et al. (1983). The theoretical curve (full line) lies significantly on the curve of best fit (dashed line) through the mean interval values (circles) of the galaxies (squares). The maximum distance DA = 3206 Mpc for the theoretical curve gives a mean linear size of = 0.03 Mpc.

back to the text

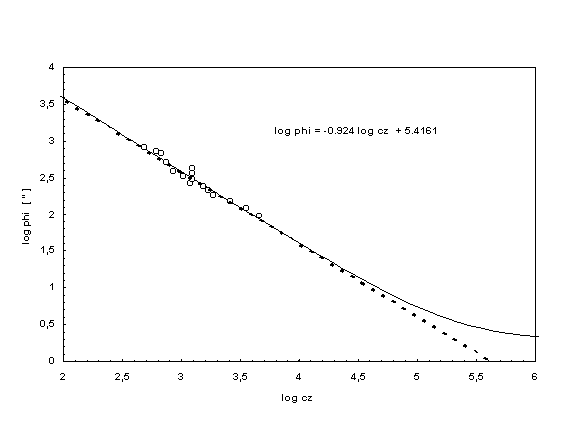

Figure 2.

Angular-redshift diagram according to Bardelli & Zucca (1995). The theoretical curve (full line) corresponds very well to the formed mean values (circles). The best fit is represented by the dashed line. The maximum distance DA = 3206 Mpc for the theoretical curve gives a mean linear size = 0.03 Mpc as well.

back to the text

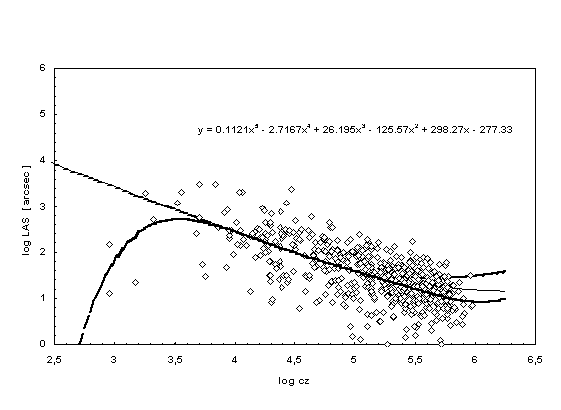

Figure 3.

Largest angular size (LAS)-redshift diagram according to Nilsson et al. (1993). The new theory is represented by the full line and the old theory is given by the dotted line. The dashed line corresponds to the best fit (5th order polynom). For further explanations see text. Here the maximum distance DA = 3206 Mpc was also used and the linear size = 0.21 Mpc is provided for both theories.

back to the text
